NIGHT VISION

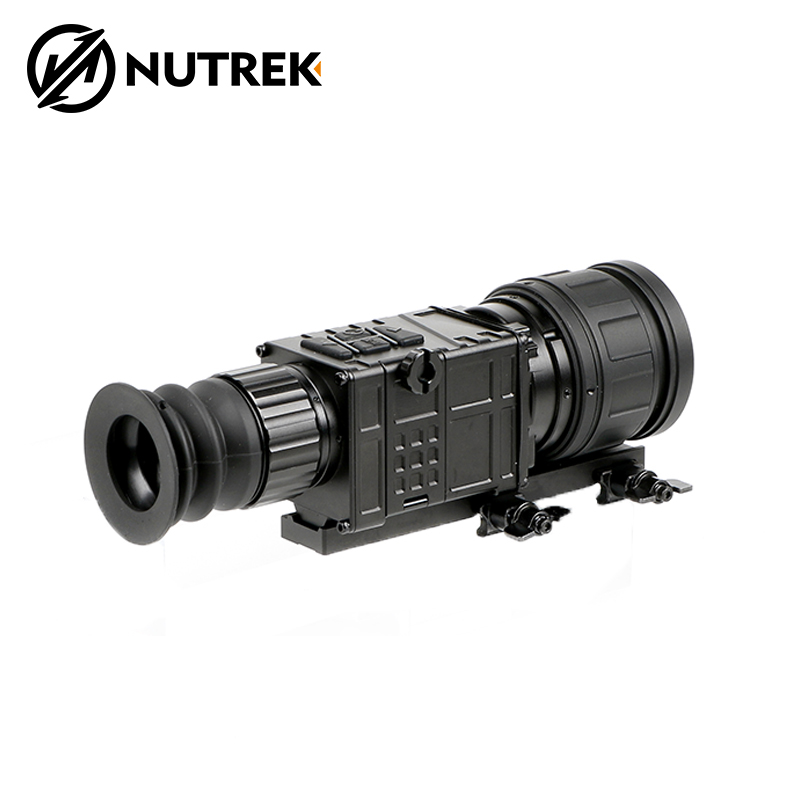

TIKO Night Vision Scopes

Item No.: NVS06T-50
The NUTREK TIKO series Thermal Imaging Scopes are built per MIL-STD-810F to provide assuring reliability for use under harsh environment. Available with two models of 50mm or 75mm large aperture objective that collect maximum thermal radiation to increase detection sensitivity, the NUTREK TIKO Thermal Scopes
utilizes 17μm 384x288 pixel detector with sharp AMOLED display for full contrast and clarity. Built compact and robust with tool-free picatinny mount for easy atiachment to weapon for switi tactical deployment. Field-tested with 12GA ammo load, fit for both hunting and tactical mission.
get a free quote

OVERVIEW

The NUTREK TIKO series Thermal Imaging Scopes are built per MIL-STD-810F to provide assuring reliability for use under harsh environment. Available with two models of 50mm or 75mm large aperture objective that collect maximum thermal radiation to increase detection sensitivity, the NUTREK TIKO Thermal Scopes utilizes 17μm 384x288 pixel detector with sharp AMOLED display for full contrast and clarity. Built compact and robust with tool-free picatinny mount for easy atiachment to weapon for switi tactical deployment. Field-tested with 12GA ammo load, fit for both hunting and tactical mission.Built compact and robust with tool-free Picatinny mount for easy attachment to weapon for swift tactical deployment. Field-tested with 12GA ammo load, fit for both hunting and tactical mission.

* Built per MIL-SPEC for use in harsh hunting/shooting conditions

* Large aperture objective for maximum thermal radiation collection

* Utilizes sensitive ULIS Asi 17μm 384x288 pixel detector

* Convenient ZERO adjustment with multiple reticle options

* Tool-free picatinny mount for easy weapon attachment


FEATURES

  • Color

    Matte black by default
    Other colors can be customized

Specification


ITEM NVS06T-50 NVS06T-75
Model 3.5-14x50 5-20x75
Optical Magnification 3.5x 5x
Electronic Zoom 1~4x
System Magnification 3.5-14x 5-20x
Objective Aperture 50mm 75mm
Detercor Type ULIS Asi
Pixel 384x288
Pixel Pitch 17μm
NETD 40mk
Field of View (±5%) 7.5°×5.5° 5°×3.75°
Frame Rate 50Hz
Focus Manual
Display AMOLED 800×600
Exit-pupil Distance 60mm
Brightness/Contrast Adjustable
Imaging Palette Black Hot / White Hot
Picture in Picture YES
Division NO
WIFI NO
Storage NO
Storage Content NO
Battery Type CR123A x2
Working Hour 3.5H 3.5H
Connector Socket DC12V;CVBS(PAL)
Shock-G Rating 1200G
Anti-Vibration MIL-STD-810F
Waterproof Level IP67
Electromagnetic Compatibility
Working Humidity 0%-95%
Working Temperature -20~50
Storage Temperature -40~70
Height of the Scope Axis Above Rail 47.5mm 52.5mm
Size (w/o eye shield) 205×75×65mm 224×75×86mm
Size (with eye shield) 250×75×82mm 270×75×95mm
Weight (w/o Battery) 700g 800g
Weight (with Battery) 850g 960g
ITEM
Detection Distance - Human 1650m 2300m
Detection Distance - Vehicle 3200m 4500m
Recognition Distance - Human 600m 850m
Recognition Distance - Vehicle 1100m 1600m
Laser Rangfinder 10m ~ 600m ± 2m (Optional Module)

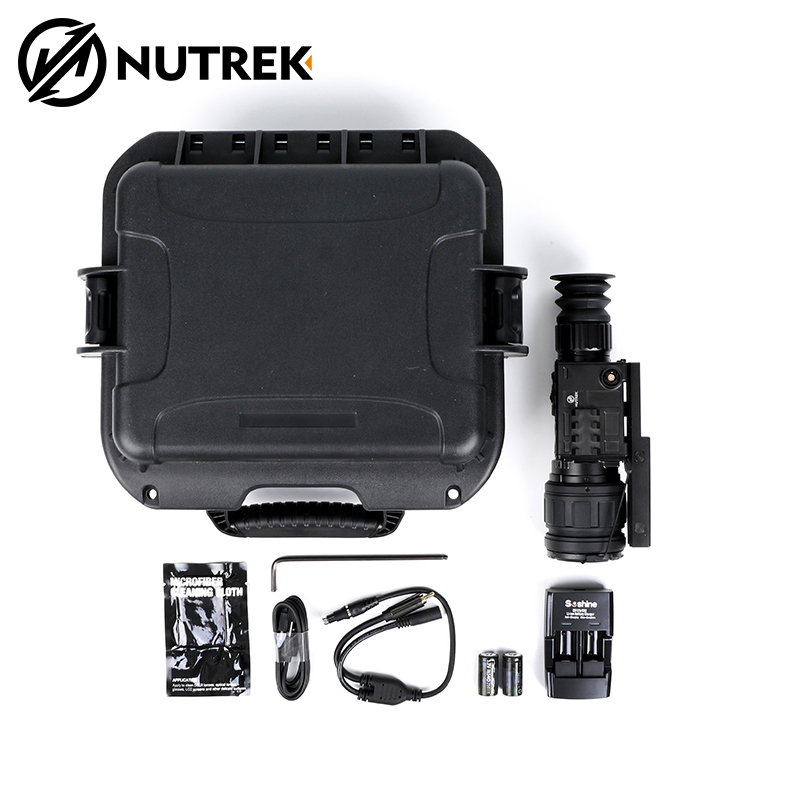

ACCESSORIES
