Discoverer
Discoverer Binocular Telescopes

Name: Discoverer Binocular Telescopes
Brand: Nutrek
SKU: TSB01
Availability: OutOfStock

Item No.: TSB01

* Binocular telescope for comfortable observation and less strain
* Upright image compatible with instance observatory perception
* Large aperture and apochromatic lens design with high resolution
* Fully multi-coating optics enhances light transmission rate
* Premium optics with ED or Fluorite glasses available (certain models) for unparalleled aberration correction
* Substutable eyepiece for magnification replacement and extension
* Extendable and retractable sunshade to eliminate stray light glare
* IPx5 watertight level suitable for outdoor observation and surveillance
* Built-in carrying handle for convenient handle and mounting of binoculars

get a free quote

OVERVIEW

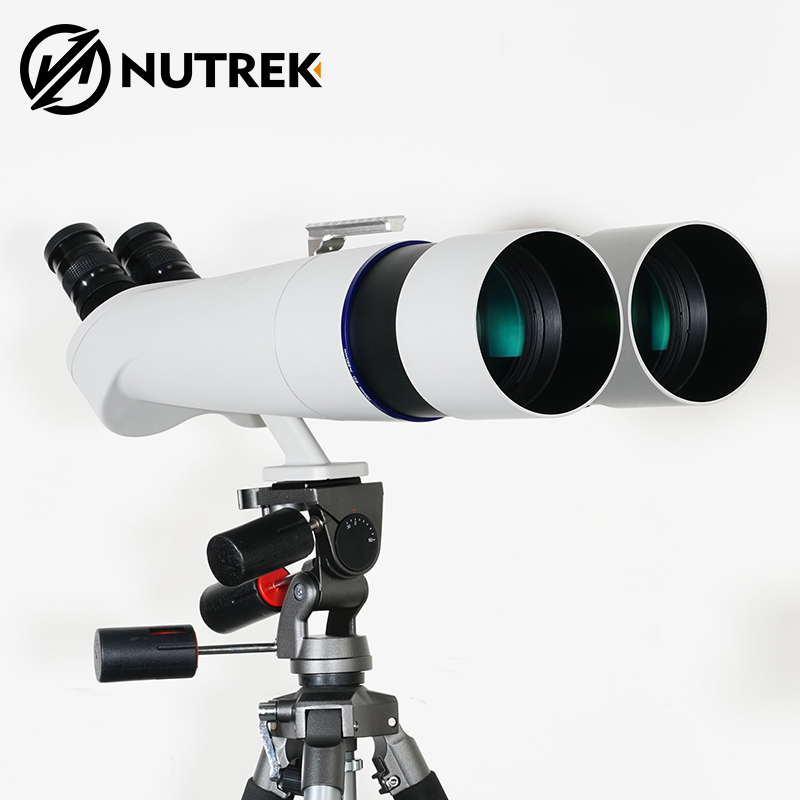

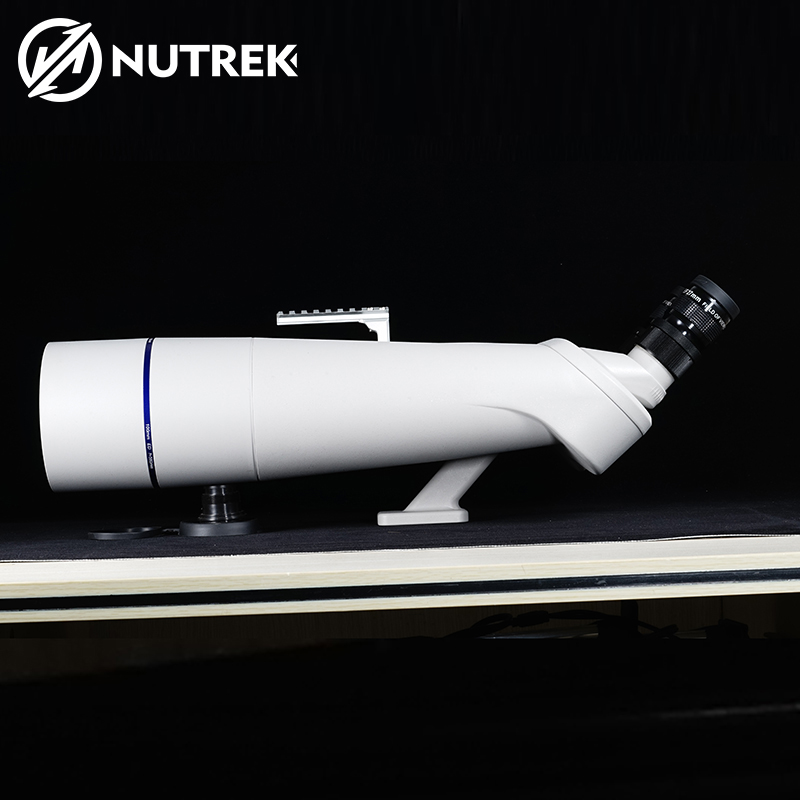

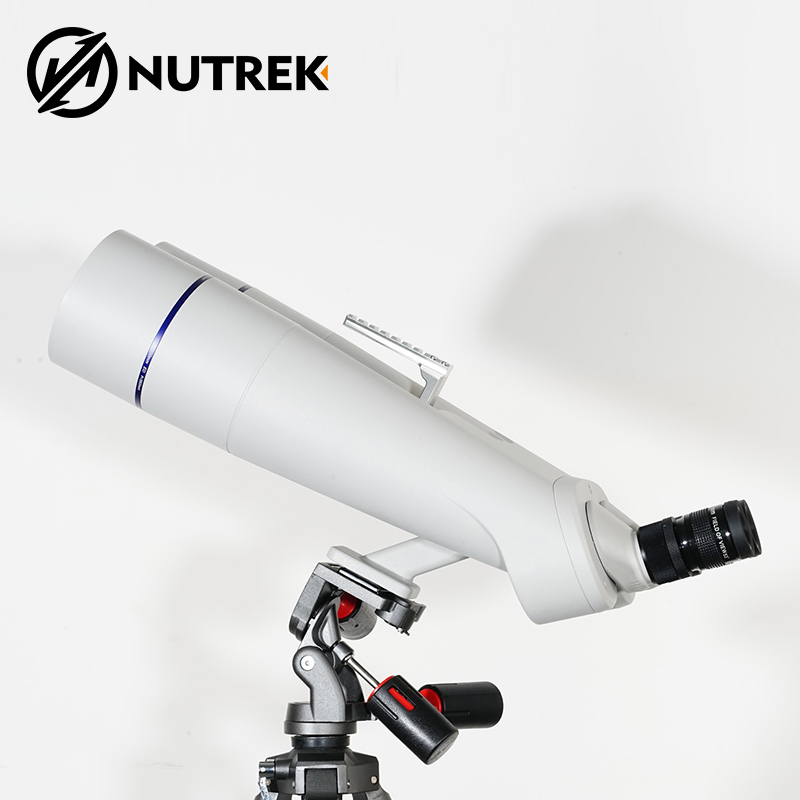

The NUTREK Discoverer series of binocular telescopes are top-line instruments ideal for both astronomical and ground-surface observation.
The binocular structure has the absolute advantage in terms of observatory experience over the monocular type telescope. The DISCOVERER giant binoculars
offer comfortable viewing without eye strain that is easily caught when observing with a monocular telescope.
Utilizing advanced apochromatic lens design, with the option of ED or fluorite objective lens, the DISCOVERER telescopic binos offers a wide configuration
selection in terms of glass types and apertures.

FEATURES

Color

Matte black by default

Other colors can be customized

SPECIFICATION

MODELS	100HD	100ED	100SD	82HD	82ED
Series Name	Discoverer	Discoverer	Discoverer	Discoverer	Discoverer
Item#	TSB0101	TSB0102	TSB0103	TSB0104	TSB0105
Model	F560x100HD	F560x100ED	F560x100SD	F450x82HD	F450x82ED
Objective Lens Diameter	Φ100mm	Φ100mm	Φ100mm	Φ82mm	Φ82mm
Objective Focal Length	560mm	560mm	560mm	450mm	450mm
Eyepiece Focal Length	14mm	14mm	14mm	14mm	14mm
Eyepiece Barrel Dia.	1.25"	1.25"	1.25"	1.25"	1.25"
Magnification	40x	40x	40x	40x	40x
Focus System	Individual	Individual	Individual	Individual	Individual
Objective Material	HD Glass	ED Glass	Fluorite Glass	HD Glass	ED Glass
Number of Elements & Group	7 elements / 6 groups	7 elements / 6 groups	7 elements / 6 groups	7 elements / 6 groups	7 elements / 6 groups
Coating	FMC	FMC	FMC	FMC	FMC
Resolution	≤1.6”	≤1.6”	≤1.6”	≤2”	≤2”
Field of View	1.9°	1.9°	1.9°	2.2°	2.2°
	34	34	34	39	39
	102	102	102	116	116
Exit-pupil Diameter	2.55mm	2.55mm	2.55mm	2.55mm	2.55mm
Eye Relief	19.5mm	19.5mm	19.5mm	19.5mm	19.5mm
Interpupillary Distance	56-76mm	56-76mm	56-76mm	56-76mm	56-76mm
Near Focus	20M	20M	20M	16M	16M
Nitrogen Purged	Yes	Yes	Yes	Yes	Yes
Waterproof	IPx5	IPx5	IPx5	IPx5	IPx5
