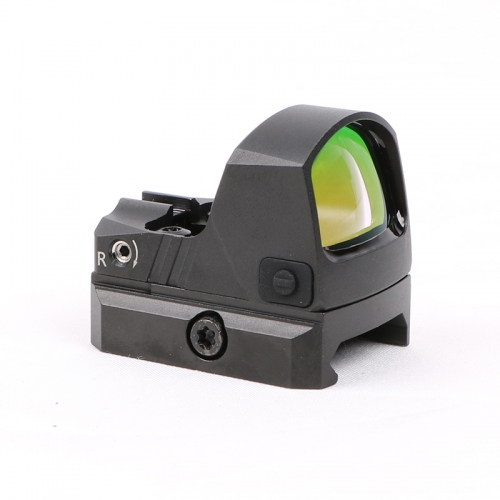

Blade
1x24x17 Dot Sight

Item No.: DSL15R
Ex-small and performs excellence, the NUTREK BLADE Red Dot Sight accomplishes your dream to be a fast action shooter.Weighing less than 40g (without battery and base mount), NUTREK BLADE add basically no weight to your pistol. With the feature of shake-to-lit function, and the rear slot sight, your target is locked instinctively.
get a free quote

OVERVIEW

Ex-small and performing excellence, the NUTREK BLADE Red Dot Sight accomplishes your dream to be a fast action shooter. Weighing less than 40g (without battery and base mount), NUTREK BLADE adds basically no weight to your pistol. With the feature of the shake-to-lit function and the rear slot sight, your target is locked instinctively.

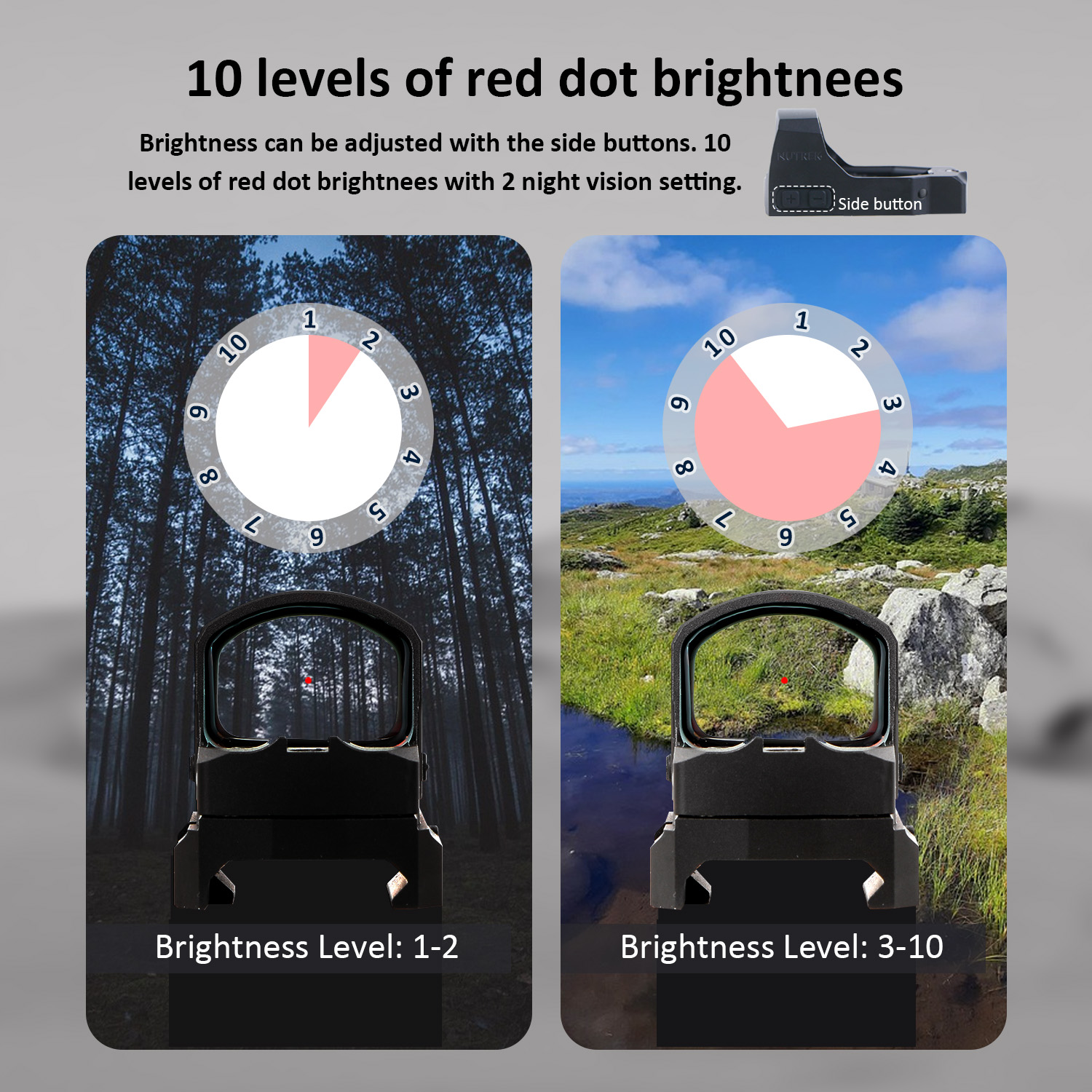

· 10 Levels of Red Dot brightness adjusted by buttons

· 2 Night Vision setting + 8 Day Light setting

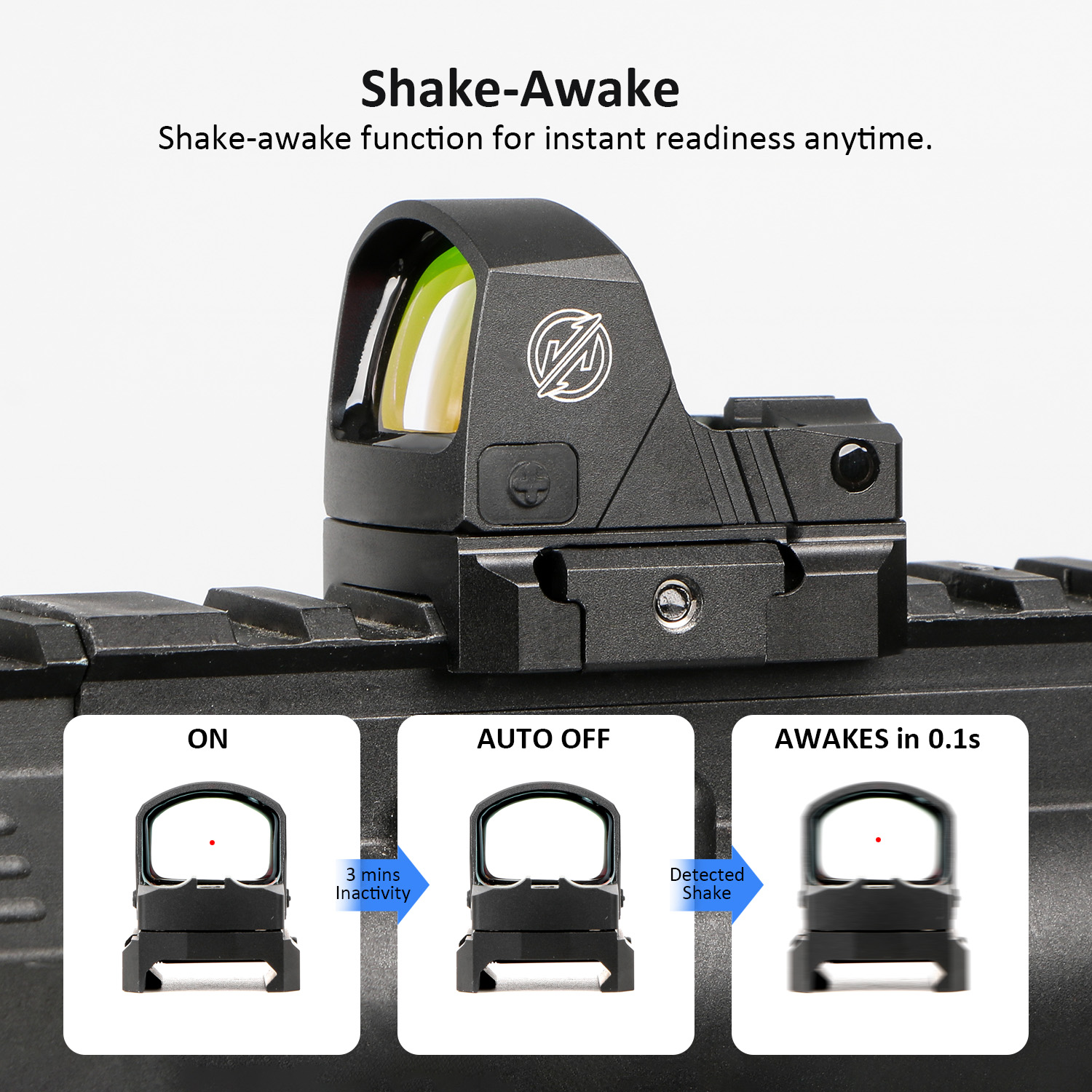

· Motion trigger to automatically turn ON/OFF: Shake to turn on and turning off when idling for 2 minutes

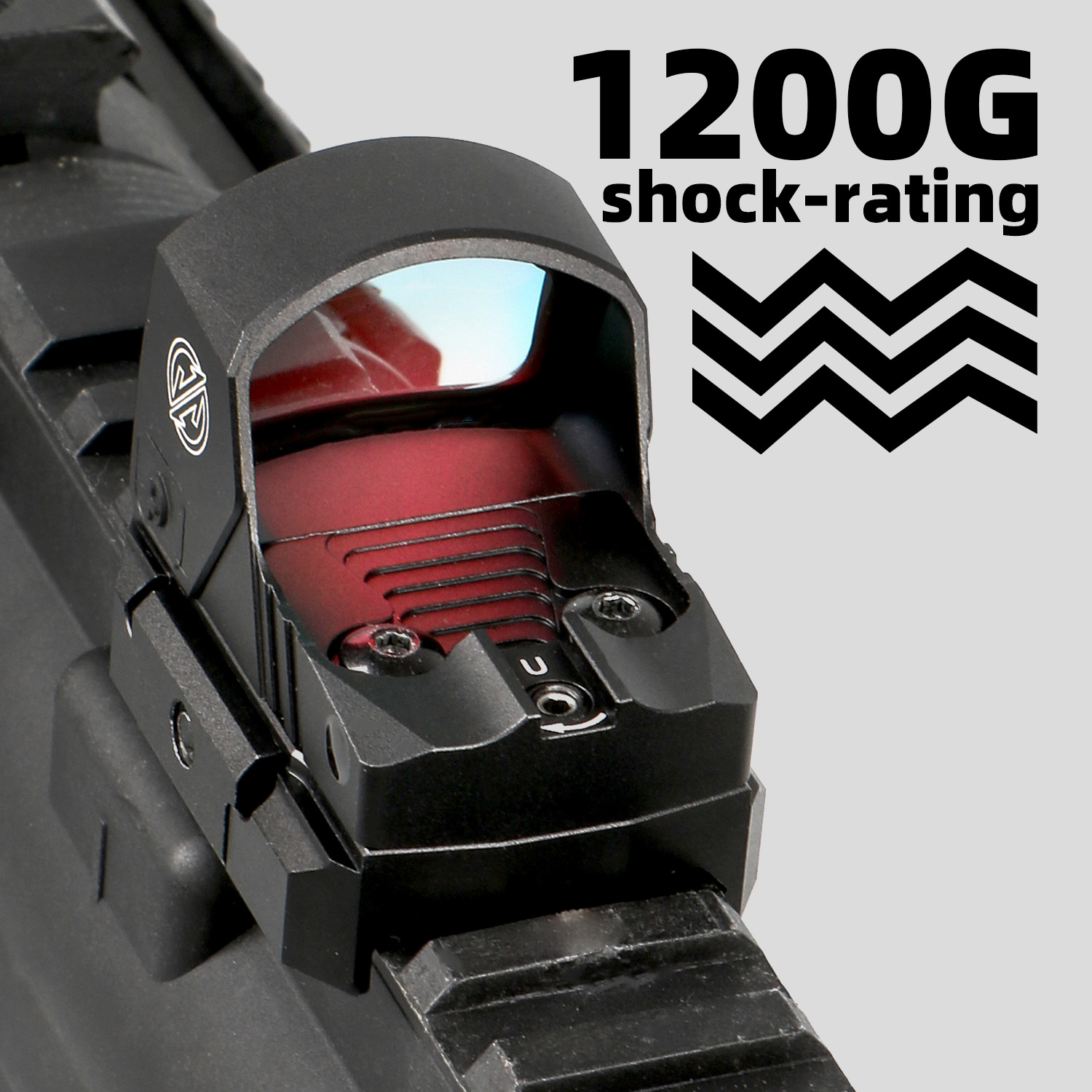

· Shock G-force rating of 1200G withstand the recoil of most high-power firearms

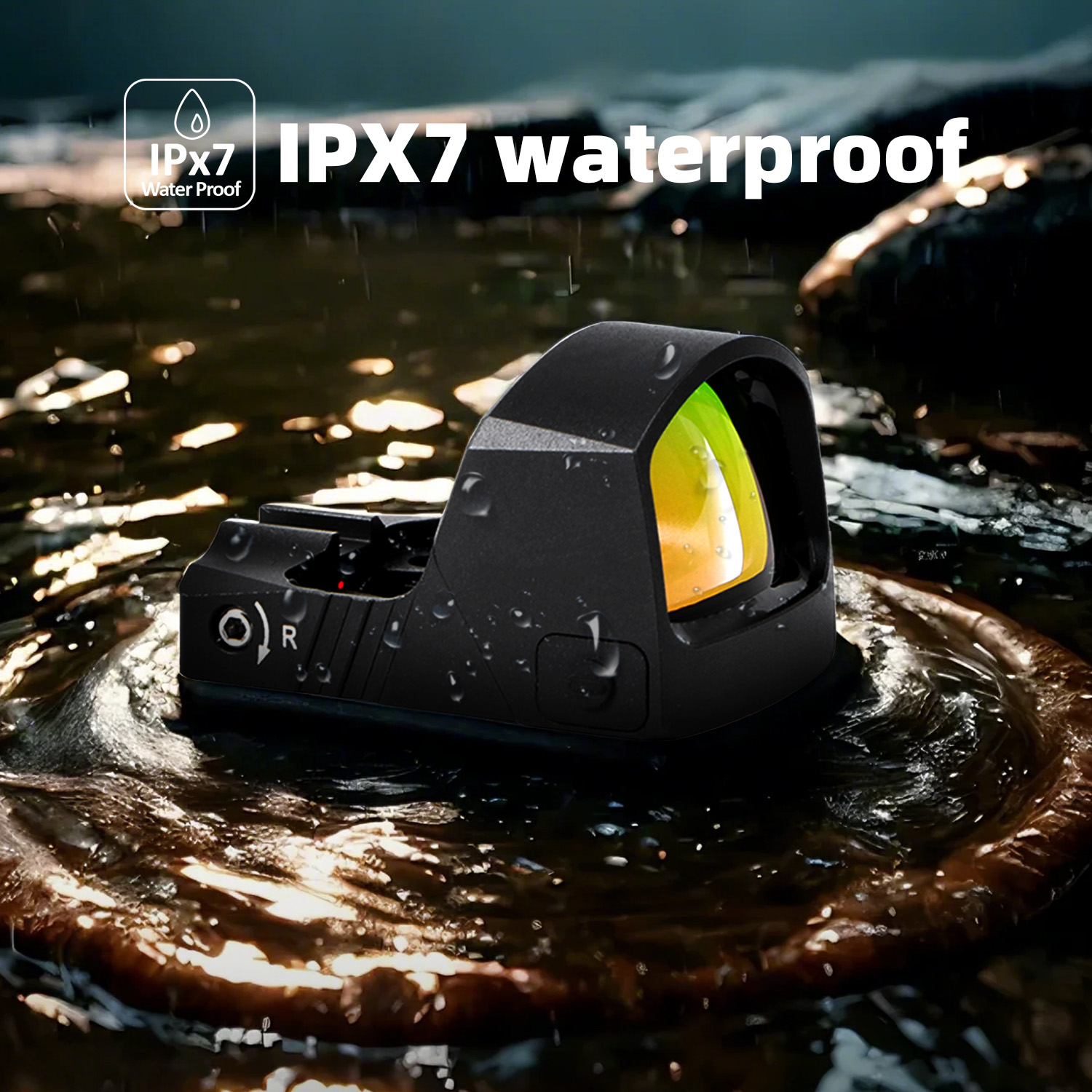

· IPx7 Waterproof for harsh working conditions

· Low-energy LED with 50,000h working hour at a medium setting

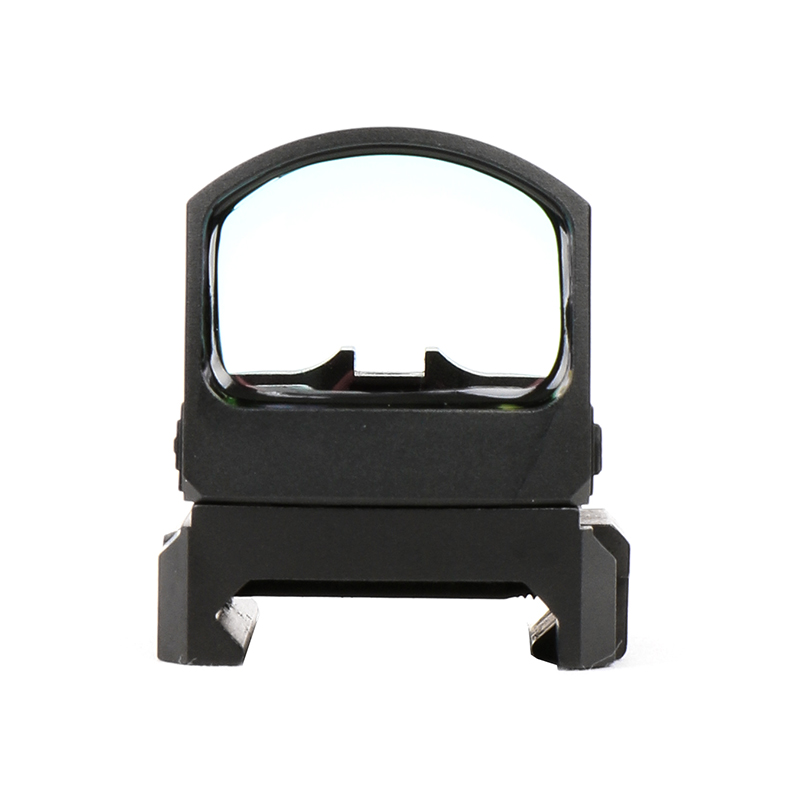

· Rear sight to further accelerate target acquisition

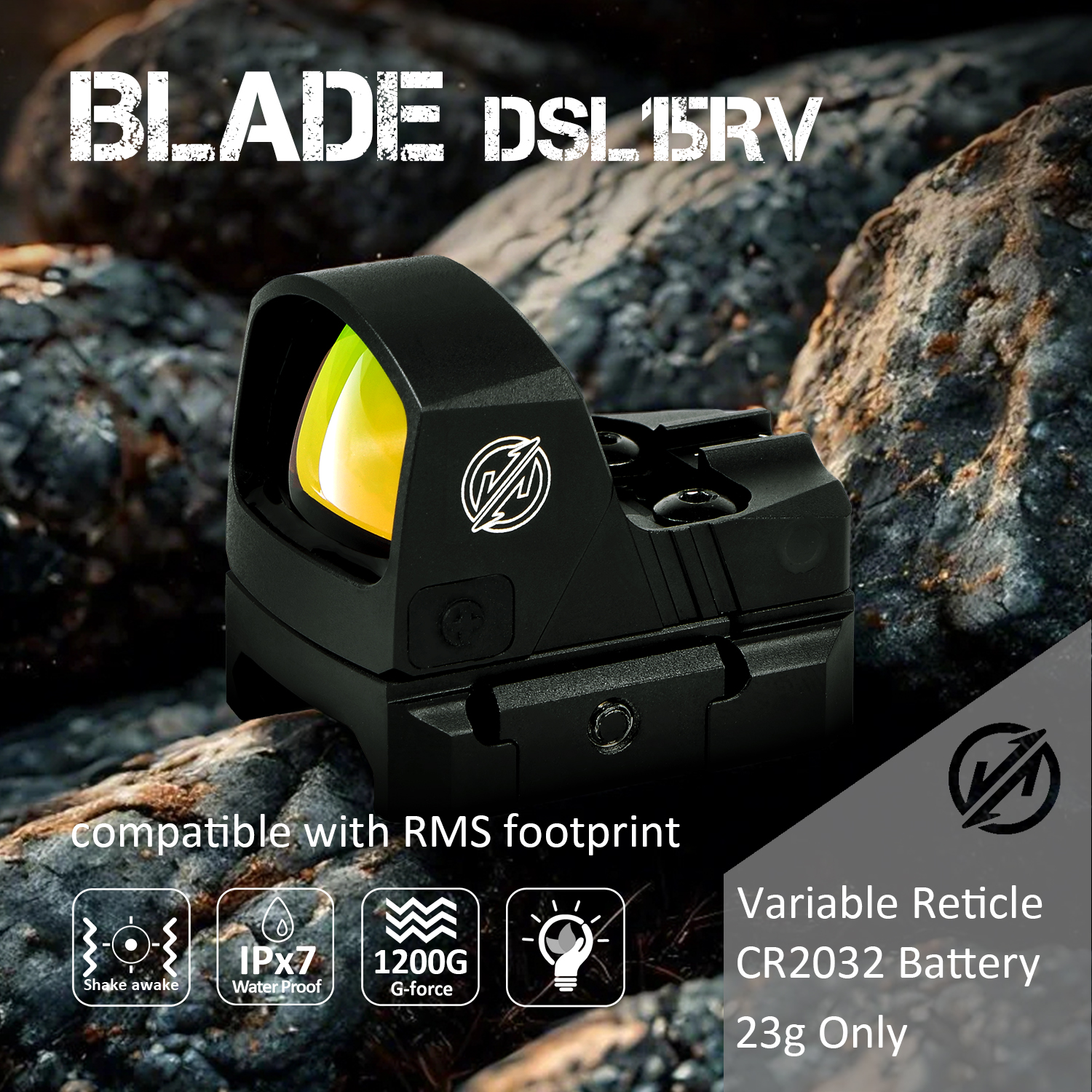

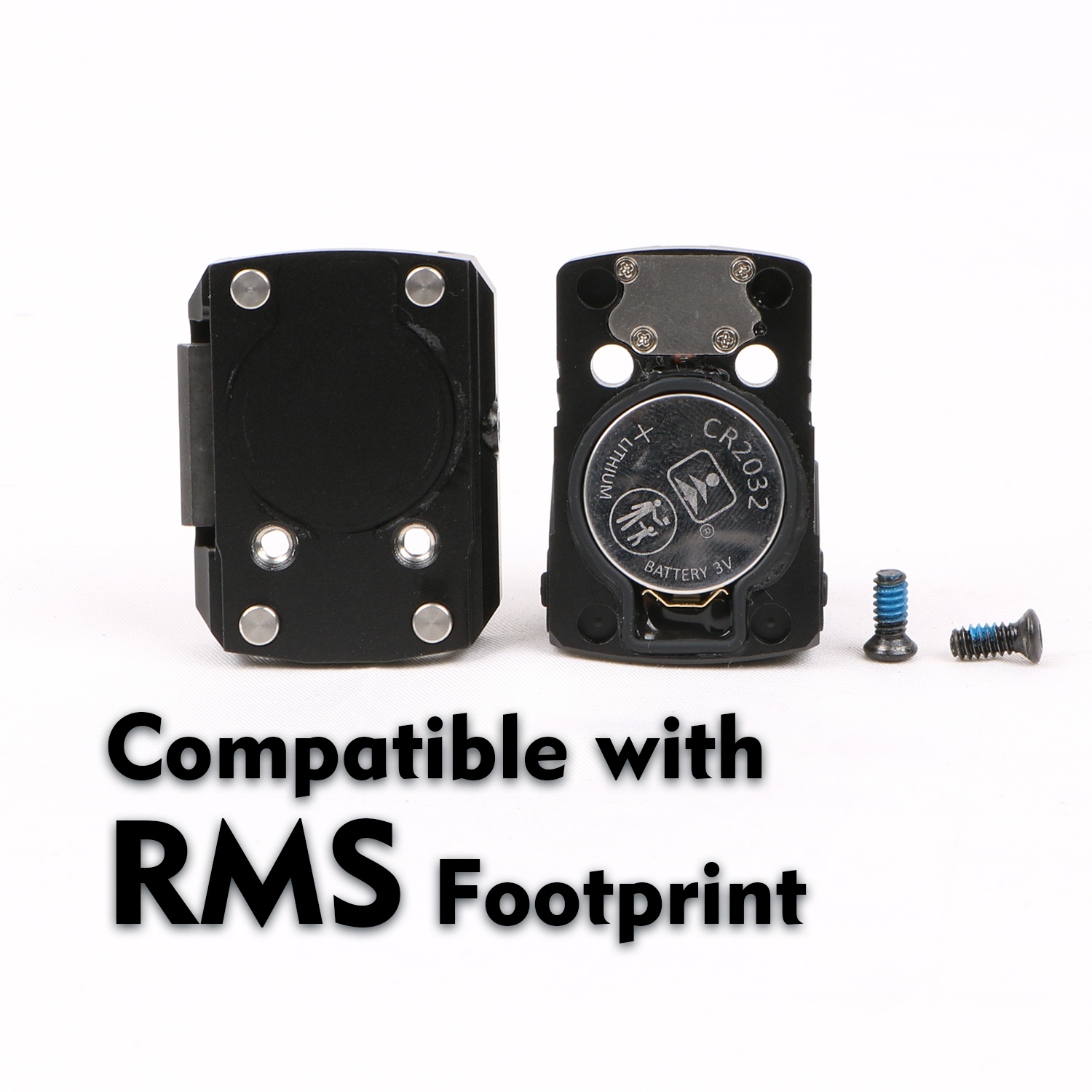

· Compatible with Shield RMS footprint

· Included base mount to Picatinny/Weaver rails

· Power by Battery: 1x CR2032



FEATURES

  • Color

    -

SPECIFICATION

Item No. DSL15R
Magnification 1x
OBJECTIVE Size (mm) 24x17
RETICLE COLOR  Red

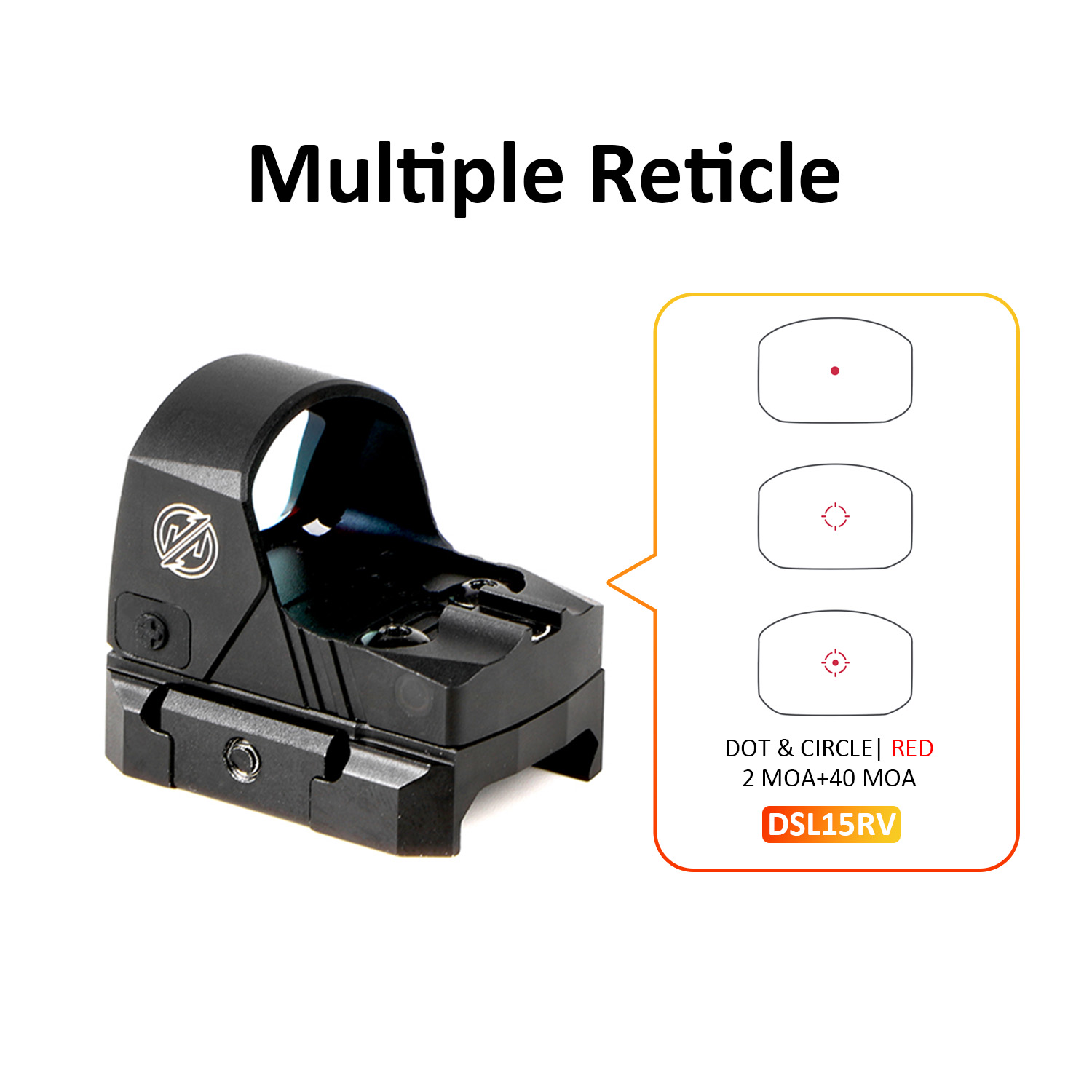

RETICLE STYLES Dot
BRIGHTNESS LEVELS 10
WEIGHT(g) 23
Dot Size 3 MOA
Adjustment
Graduation
1MOA
Adjustment
Range
≥45MOA
G-force 1200G
Eye Relief (mm)
Parallax 2MOA
Waterproof IPx7
